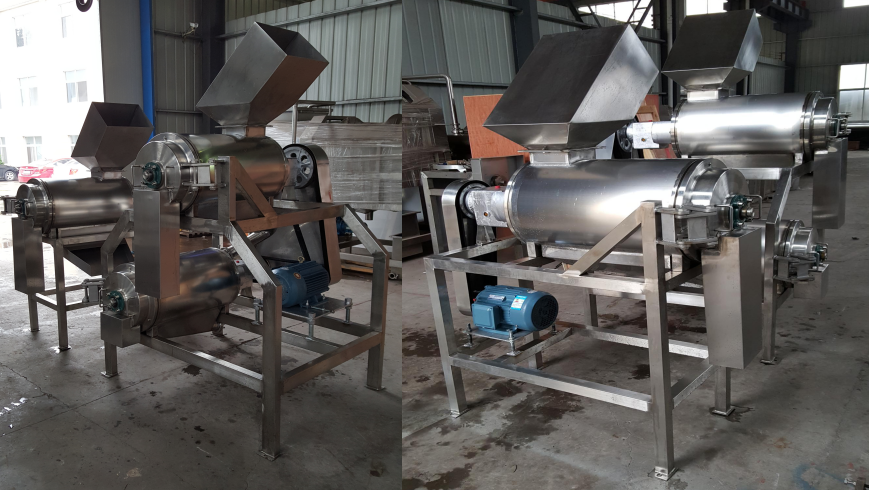

Automatic Fruit Coring and Pulping Machine/Fruit Juice Machine

1.The description of Fruit Coring and Pulping Machine

The machine is suitable for the nucleation and beating separation of fruits such as mango, peach and apricot, berry (kiwifruit and strawberry), and pre-cooked softened nuts (apples and pears).

2.The feature of Fruit Coring and Pulping Machine.

1.	automatic separation of pulp;
2.	can be combined in the production line, but also stand-alone production;
3.	contact with the material are made of high quality stainless steel, in line with food hygiene health.

3.The main structure of Fruit Coring and Pulping Machine.

Transmission system, bearing seat, sleeve shaft, tube back cover, retaining pad, shaft, screen, scraper.

4.The working principle of Fruit Coring and Pulping Machine.

Stone fruit

Motor through the V-belt drive, so that high-speed rotation of the rotor parts, the fruit from the feeding machine, the feeding material will be sent to the pulp slurry beating screw rod, the role of beating rods, the material was smashed. Because of the centrifugal force, the juice and flesh in the material (has become slurry) through the sieve on the screen into the next process, the core from the slag leaves out the slag mouth, in order to achieve automatic separation of pulp.

Berries

The motor is driven by a V-belt, so that the scraper mounted on the spline shaft rotates at a high speed. When the broken fruit enters the machine through the feed inlet, the material is evenly distributed between the scraper and the screen, As the blade rotation and lead the existence of the angle, so that the material along the cylinder to the export-side movement, the trajectory was moving spiral, the material in the scraper and the process of moving between the screen by the role of centrifugal force was The process of sifting, sap and flesh (pasted) is passed from the sieve to the next process (double-pass beater is linked to repeat the above process), the skin and seeds are discharged from the hopper to achieve the purpose of automatic separation . As long as the transformation of different specifications of the screen and adjust the size of the blade lead angle, can change the beating speed of different, was satisfied with the results.
