Vacuum nitrogen filled packing machine

//Vacuum nitrogen filled packing machine

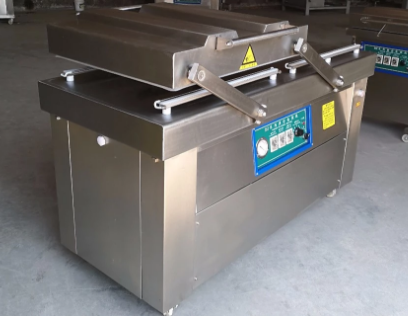

The double chambers vacuum packaging machine is ideal equipment for packing meat products, seafood, snacks,  rice millet, electronic components, hardware, and medical instruments etc.
This machine can prevent oxygen and getting damp from products, greatly extending freshness, flavor and shelf life. It can vacuum seal most plastic and plastic-aluminum laminated bags. The double chamber design quickens the packaging process with two chambers working in turns.

Model DZ-400/2S DZ-500/2S DZ-600/2S
Voltage/frequency V/HZ 220(V)380V/50HZ 380V/50HZ 380V/50HZ
Average current drain(power consumption) 0.8KW 0.8KW 2.2KW
Vacuum room size (mm) 520*500*110 620*560*125 720*600*140
Effective seal size (mm) 400*10*2 500*10*2 600*10*2
Heat seal amount 2*2 2*2 2*2
Distance between two heat seals 400mm 415mm 470mm
Min. utter negative pressure 1.33kpa 1.33kpa 1.33kpa
Pumping speed 5.5L/S 11L/S 15L/S
Work efficiency (full length seal amount/h) 160-250 180-300 180-300
Outline size(mm) 1030*630*850 1220*660*900 1525*720*1050
Machine weight 170kg 200kg 380kg

Product Advantages

Main Features

  1. Quality guaranteed by best structure and famous brand components:

(a) SUS304 food grade stainless steel structure, 4mm-5mm;

(b) BUSCH vacuum pump (options available)

(c) Omron relay, Schneider AC contactor (options available)

(d) All other electric parts conform to CCC certification

  1. Machine constructed complying to CE rules in terms of safety and hygiene.
  2. Microcomputer control system & electrical box are waterproof
    4. The vacuum and package sealing is finished automatically. Parameter of sealing and vacuum can be     adjusted accurately.
  3. Each seal wire can be controlled individually; Thermal fuse is installed to protect sealing wire, reduce maintenance cost.
    6. Equipped with braking wheels for easy machine’s moving.
    7. Vacuum chamber with solid height adjustable filler plates, applicable for various mass     production
