Automatic packing machine with 10 heads combination weigher

Automatic packing machine with 10 heads combination weigher Introduction

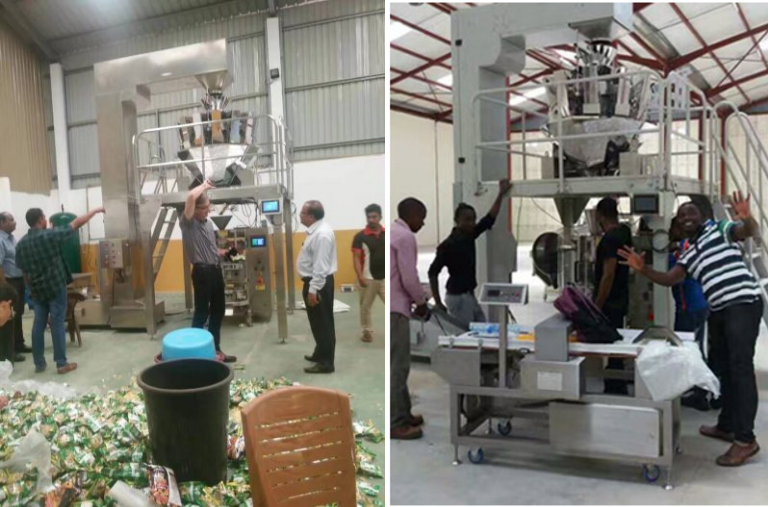

This automatic food weighing and packing machine is consists of vertical automatic packing machine, 10-heads combination weigher, z type elevator(with vibration feeder), supporting plat form and finished products conveyor. It can realize from weighing, filling to packaging automatically.

Model No.	YH-420	YH-520	YH-620	YH-720
Packing speed	5-60bags/min	5-60bags/min	5-60bags/min	5-60bags/min
bag making size	60-300mm(L) 60x200mm(W)	80-400mm(L) 150-250mm(W)	200-400mm(L) 100-330mm(w)	200-380mm(L) 140-350mm(w)

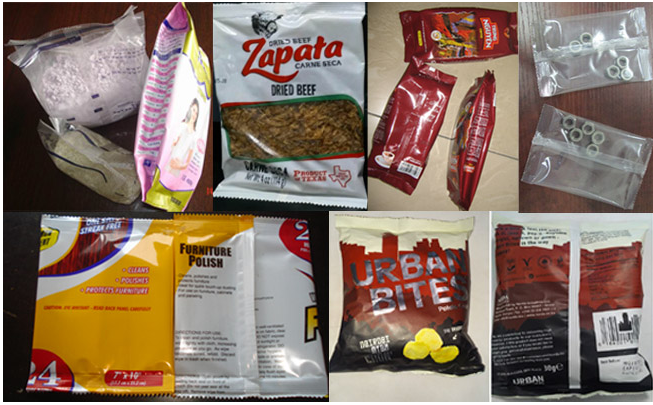

bag type	Pillow bag, gusseted bag, punched bag hanging bag
Max film width	420mm	520mm	620mm	720mm
Film thickness	0.04-0.09mm	0.04-0.09mm	0.04-0.09mm	0.04-0.09mm
Pulling belt type	Single belts	Double belts	Double belts	Double belts
Air Consumption	0.65Mpa 0.3m3/min	0.65Mpa 0.3m3/min	0.8Mpa 0.5 m3/min	0.8Mpa 0.5 m3/min
Voltage	220v/380v, single/three phases, 50/60Hz. or as per your local voltage
Dimension	1530x970x1600mm	1440x1216x1796mm	1440x1216x1796mm	1780x1350x2050mm
Weight	450kg	600kg	750kg	850kg

Features:
1. It employs imported PLC computer control system, Chinese and English touch screen operating system, the working condition and operating instructions can be show clearly.
2. It is using high precision servo film transporting system, transport membrane smooth, with automatic photoelectric tracking system, high positioning accuracy.
3. Intelligent digital temperature control system, temperature control stability, match with tooth profile sealing device, ensure perfect sealing.
4. Automatic fault alarm display function, such as low temperature, no packing film, no material and so on.
5. Film drawing down system by servo motor , horizontal sealing controlled by pneumatic control
6. It is a fully automatic equipment can automatically complete all packaging process of measuring, feeding, filling, bag making, date printing, finished product output.
7. It is with the advantage of high accuracy, high efficiency without crushing the materials. And with low cost high gain, high speed and efficiency.

Main electrical equipment list:

Item	Name	Brand	Origin	Remark
1	Touch-sensitive screen	WEINVIEW	Taiwan of China	color screen
2	Programmer controll system	Mitsubishi/sinmmens	Japan
3	Servo motor	Schneider	Germany
4	Cylinder	Airtac	Taiwan of China
5	Electromagnetic valve	JINGQI	Taiwan of China
6	Intermediate relay	Weidmuller	Germany
7	Photoelectric eye	BEDELI	Taiwan of China
8	Solid state relay	XIANLI /OMRON
